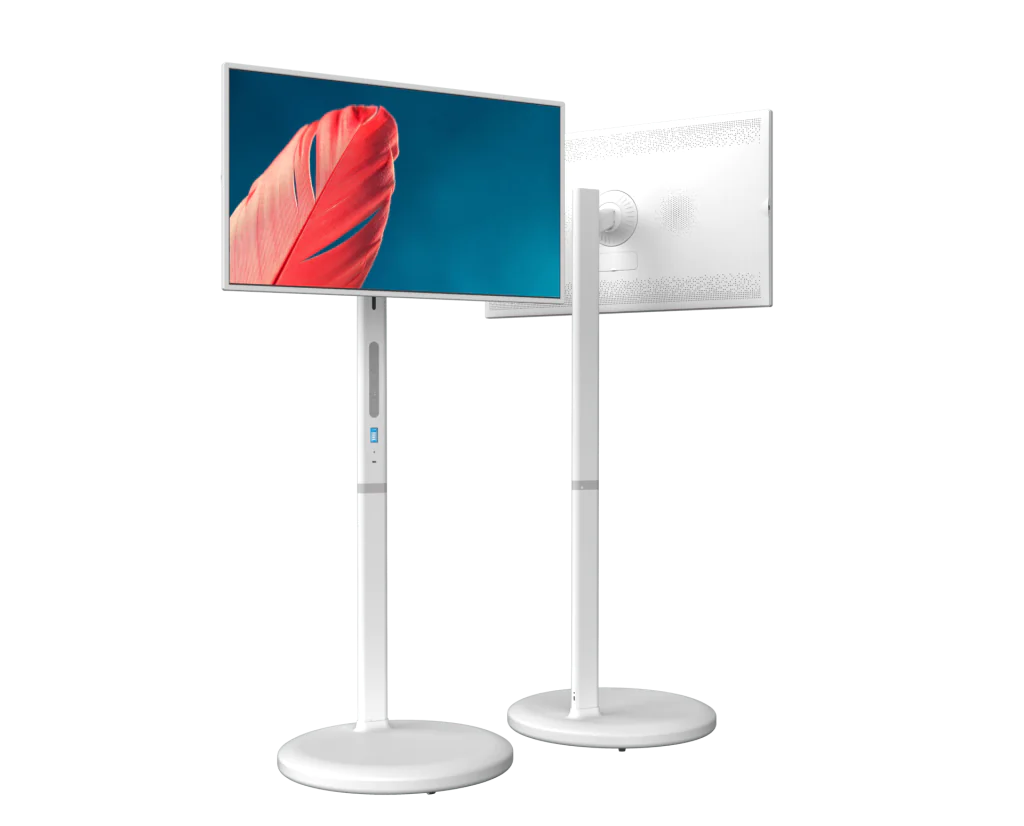

The product supports 180-degree arbitrary rotation
Whatsapp
Whatsapp: +86 13423713283
The product supports 180-degree arbitrary rotation
Supports 45° tilt adjustment (25° elevation, 20° depression) and 20cm height adjustment.

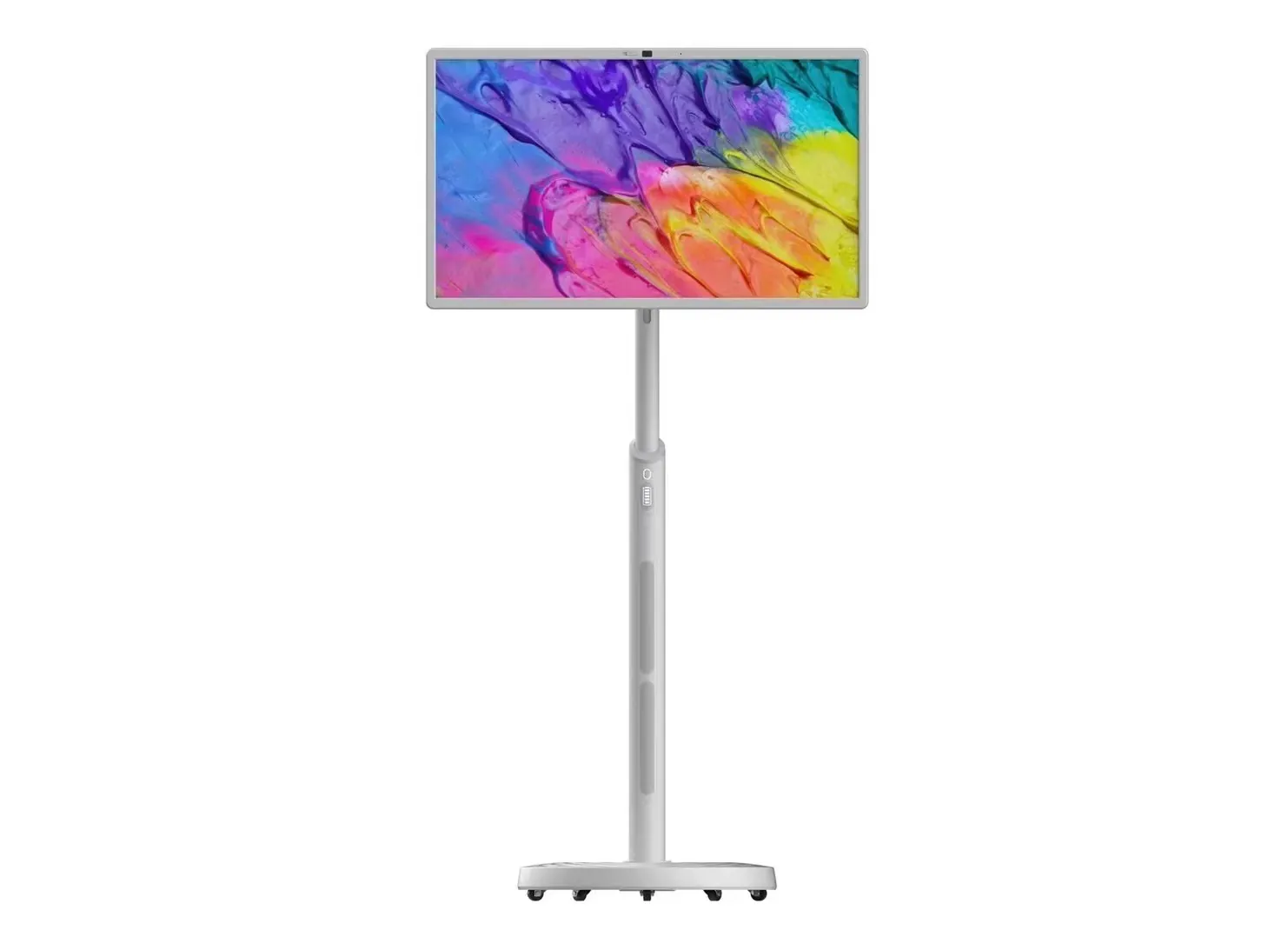

The product is light in weight and can be moved with universal wheels at any time

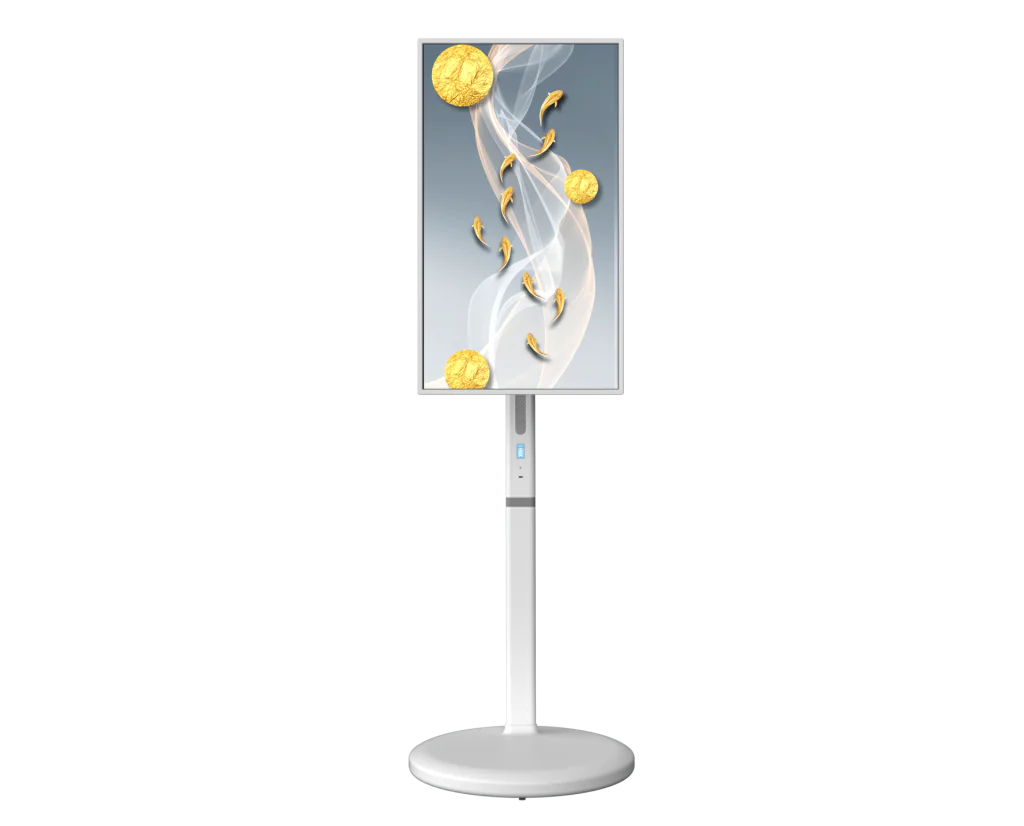

Product Configuration: MideaTek MT8183 octa-core processor, 4 x ARM Cortex A73 @ 2.0GHz /4 x ARM Cortex A53 @ 2.0GHz。
60hz high refresh rate, Bluetooth, WI-FI, everything you need
| Size | 32inch |
| Screen category | a-Si TFT-LCD, LCD glass, FOB |
| Backlight type | E-LED |
| Viewable area | 698.4*392.85mm(H*V) |
| Resolution | 1920(RGB)*1080[FHD]69PPI |
| Brightness | 280-330cd/m2 |
| Response time | 8(Typ.)(GtoG)ms |
| Contrast ratio | 1200:1 |
| Refresh rate | 60Hz |
| Color | 16.7M,100%sRGB(8bit) |
| Viewing Angle | 89/89/89/89(Min.)(CR≧10) |
| Chip | Qualcomm |
| CPU | 8 cores (4*A73-2.0GHz+4*A53-1.8GHz)-64bit |
| GPU | AdrenoTM610 |
| RAM | 8GB |
| Systems | Android13 |
| Wi-Fi | 802.11a/b/g/n/ac |
| Bluetooth | 5.0DR/EDR/BLE |
| USB | Maximum rate 480Mbps |
| HDMI | 1.4 |
| 3D Accelerated Gravity | Support |
| Gyroscope | Support |
| Built-in battery | Lithium-ion battery |
| Battery capacity | 7800MAH |
| Charging method | PD-Typec |
| DC Power Supply | 100-240V50/60Hz1.6A Chinese standard-plum blossomtail-Typec |
| Audio Amplifier | 8Ω/5W*2 |
| MIC | Support |
| Touch Type | Projected capacitive touch |
| Touch points | 10 points |
| Surface hardness | ≧3H |
| Transmittance | ≧78% |
| Voice Function | Support |
| Mouse Function | Support |
| Packing size | 795*670*210mm |
| Machine weight | 21.4KG |
| Wall hanging hole distance | 75*75mm |
| Service life | >50000H |
| Power consumption | 43.5W(max)19.3W(min) |
| Operating temperature | 0-40℃ |
| Storage temperature | -20-60℃ |
| Operating humidity | 10%-80% |
| Storage humidity | <85% |
| Remote Control | *1 |
| User Manual | *1 |
| Power cable+DP power supply | *1 |
| Ф20 gasket | *1 |
| M10*40 hexagon screw | *1 |
