The entire surface can be written directly with writing instruments such as chalk and ink. The surface is smooth, the writing is clear, and it can be easily erased without leaving traces.
Whatsapp
Whatsapp: +86 13423713283
The entire surface can be written directly with writing instruments such as chalk and ink. The surface is smooth, the writing is clear, and it can be easily erased without leaving traces.
Adopt capacitive touch technology, support 20-point touch, and easily realize multiple people writing.
Blue light eye-protective tempered glass,with intelligent eye-protective button,one-button adjustment to the best color and brightness in the current environment

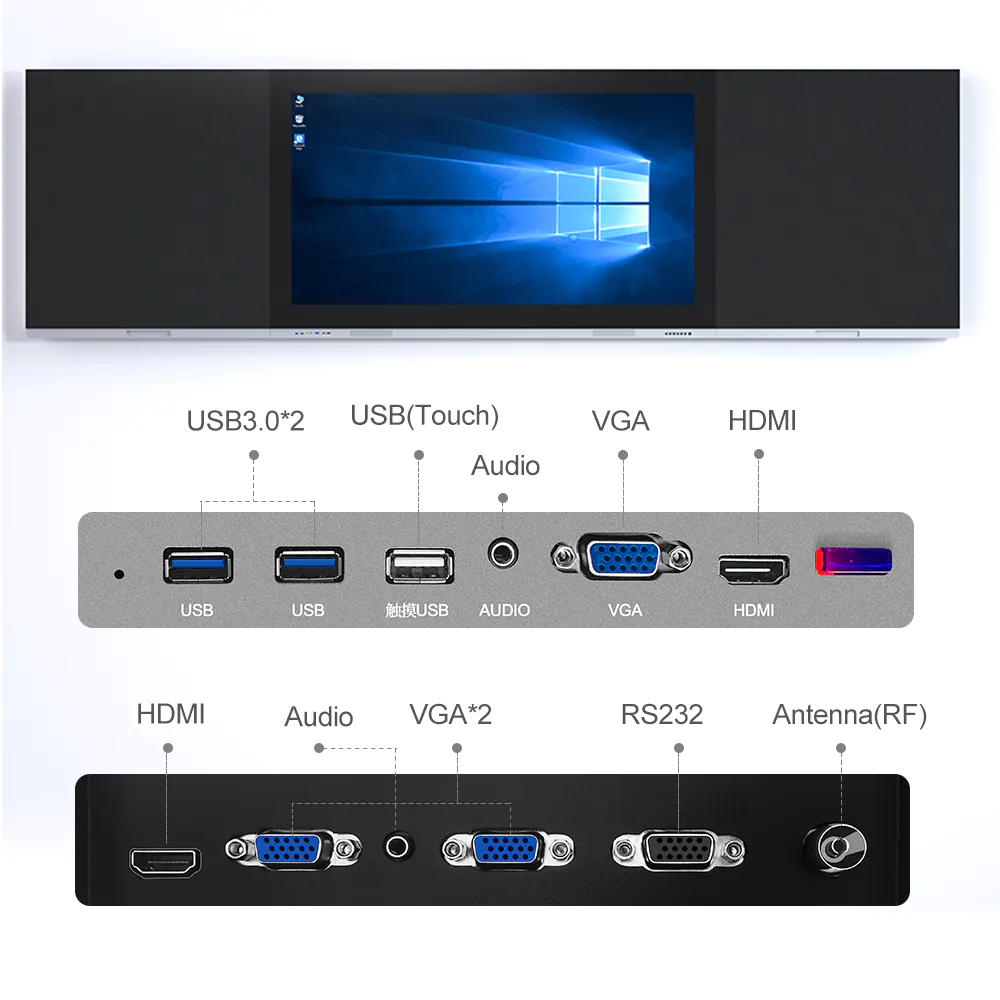

Rich interfaces meet various office learning scenarios
| Model No: | 75 inch nano blackboard | 86 inch nano blackboard | 98 inch nano blackboard |
| Whole size | 4214*1221*94mm | 4200*1221*94mm | 4500*1370*94mm |
| Net weight: | 118KG | 125KG | 162KG |
| Gross weight: | 136KG | 141KG | 190KG |
| Display size: | 75inch | 86inch | 98inch |
| Display area: | 1650*928mm | 1873*1056mm | 2158*1214mm |
| Machine power | 400W(MAX) | 400W(MAX) | 550W(MAX) |
| Standby power | 1W | ||
| Resolution ratio | 3840*2160 | ||
| Brightness | 300cd/m2 | ||

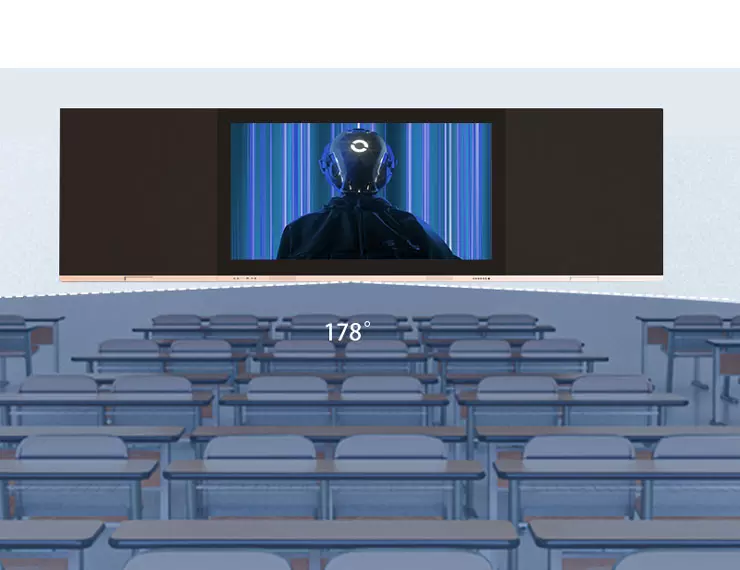

| Perspective | 178° | ||
| Power input | 100~240V/5A/60HZ/50HZ | ||
| Port: | Front-loading: USB3.0*3 Type C*1 Touch USB*1 HDMI in*1 Rear-loading：COAXIAL Out*1 Earphone Out*1 PC Audio In*1 VGA*1 RS232*1 TV In*1 AV Out*1 HDMI in*2 USB*2 Touch USB*1 TF Card*1 | ||
| COMPUTER CONFIGURATION PARAMETERS | |||
| Schemes | S Version | PRO Version | Excellent version |
| CPU | Intel Core i3 | Intel Core i5 | Intel Core i7 |
| Chipset | NM76-3310/H81-4130 | NM70-3450/H81-4460 | OPS-I7A4I7 4790 |
| RAM | 4G DDR3 | ||
| Internal storage | Standard 128GB SSD | ||
| GPU | Default standard type | ||
| PC module interface configuration | 1) USB2.0*4 2) USB3.0*2 3) RJ45*1 4) HDMI(1.4a)*1 5) MIC *1 6) AUDIO LINE*1 7) VGA*1 8) WIFI*1 | ||
| COMPUTER MODULE LOAD OUTPUT PARAMETERS | |||
| Supply voltage | 12V-19V DC | ||
| Rated output current | 7.0A | ||
| Peak output current | 8.0A | ||
| Rated load power | 126W | ||
| Supported Interface Types | OPS-c 80 pin blind JAE interface complies with inter open pluggable specification | ||
| Dimensions of the external module | L196*W180*H33~42mm | ||
